Description

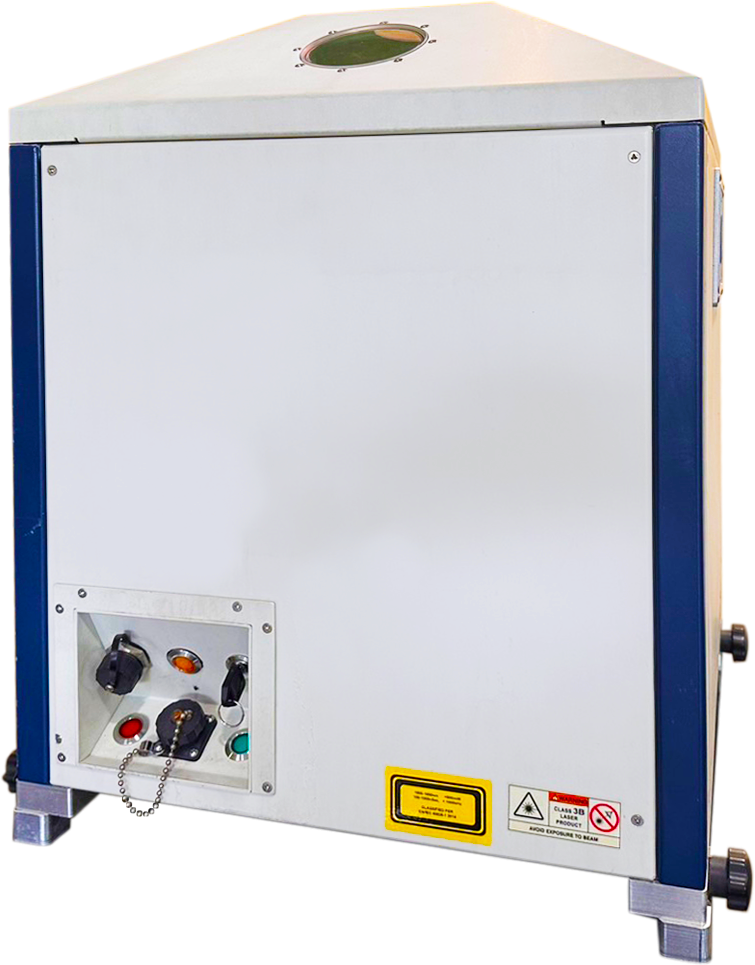

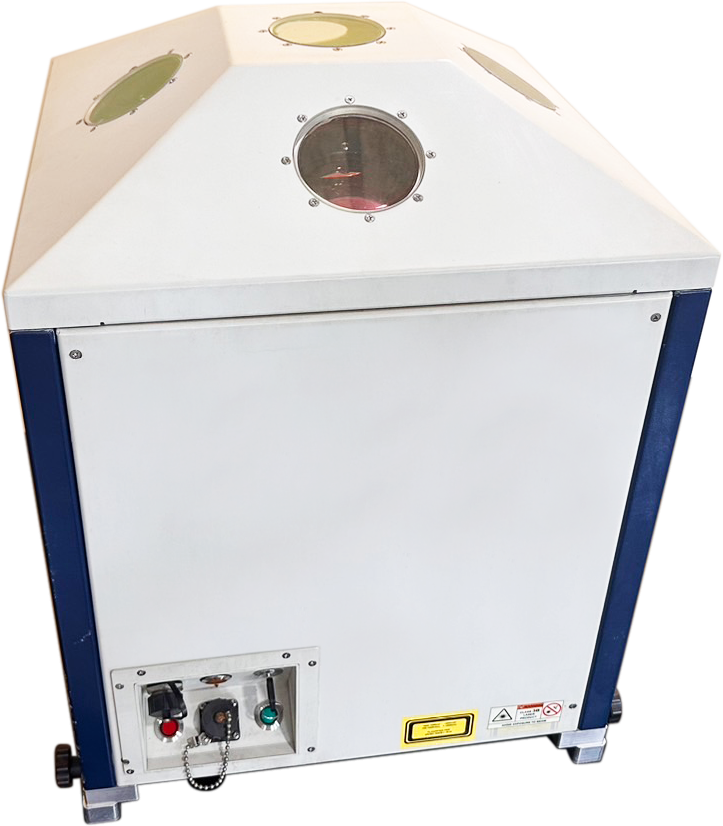

The Doppler Laser Wind Measurement System, developed by ITRI, utilizes advanced Light Detection and Ranging (LiDAR) technology to measure wind speed vectors and wind field profiles. This system is designed for accurate and remote wind resource assessment, suitable for various applications including ambient air quality monitoring, meteorology, aviation, sports, and site suitability analysis.
Key Features:
- Wind Speed Vector Measurement: Accurately measures wind speed in X, Y, and Z directions.
- Complex Terrain Profiling: Capable of providing wind field profiles in challenging terrains.
- Optical System: Comprises only optical components, eliminating the need for mechanical parts.
Applications:
- Wind Resource Assessment: Ideal for evaluating wind energy potential.
- Site Suitability: Assesses the suitability of locations for wind turbines and other installations.
- Sports Industry: Provides precise wind measurements for outdoor sports events.
- Meteorological Information: Supplies crucial wind data for aviation, particularly for aircraft in flight.
- Volumetric Meteorological (VOLMET) Services: Supports weather information dissemination.
Technical Specifications:
- Measurement Heights: 20 customizable heights (60 to 1000m).
- Wind Speed Accuracy: ±0.5 m/s.
- Wind Speed Range: 0 to 75 m/s.
- Wind Direction Accuracy: ±1°.
- Sampling Rate: 1 Hz.
- Operational Temperature: 0°C to +50°C.
- Protection Grade: IP65 (IEC 60529).
